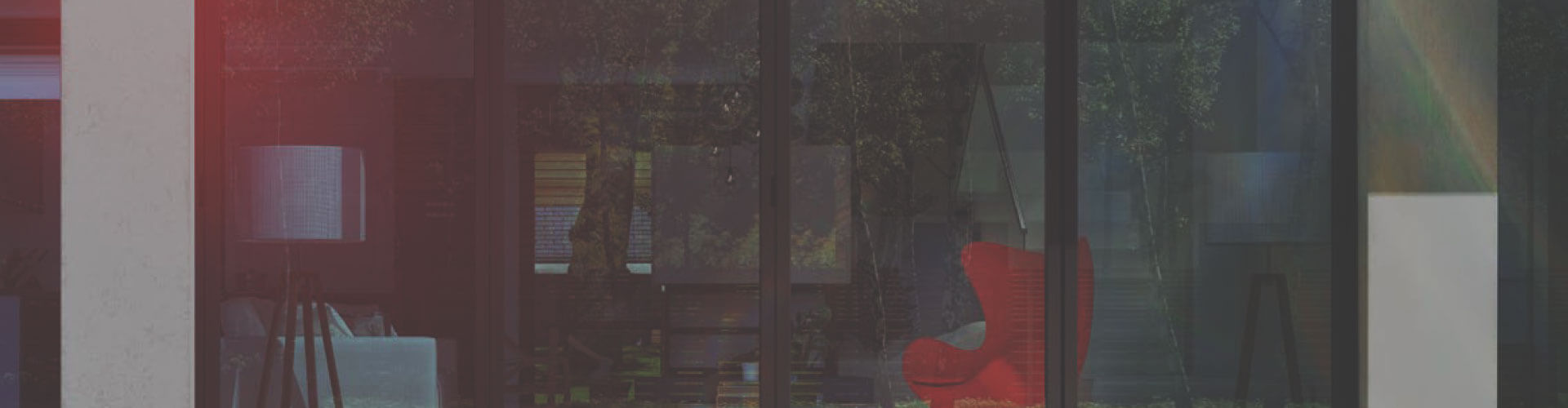

The Luminia F82 Bi-fold Door is now available

Alu-tec are one of a few fabricators authorised by aluminium systems company AluK to exclusively supply their new Luminia F82 bi-fold door through their Luminia Select Partner Network.

The Luminia F82 bi-fold door has been designed with style and performance front of mind. Engineered to withstand all that the British weather can throw at it, from exceptional performance for Air, Wind and Water resistance. The Patent Applied F82 bi-fold door has been designed to ensure the best performance and durability throughout it’s life. It delivers an industry-best 1.3 U-value thermal performance for double glazed units and 0.9 U-value for triple glazed.

Larger glazing panels, faster fabrication and installation thanks to fewer parts and profiles. While panel size options of up to 3000mm provide complete project flexibility. The F82 conforms to the latest British Standards and Building Regulations such as Document Q and L including PAS24. For added security, the Luminia F82 features shootbolts top and bottom of the interlock along with a dedicated bottom bogey guide. For greater stability, there’s also the double track threshold. And for extra safety, magnetic catches that hold the doors in place whilst being operated. As well as an anti-finger trap system, using gaskets, to prevent fingers getting trapped when the doors are closing.

We understand the desire for slimmer sightlines, which is why the Luminia F82 has been designed with reduced outer frame rebates that are symmetrical. Combined with a 122mm meeting style and a frame to glass sightline of 97mm the F82 boasts greater glazing areas flooding the room with more natural light than ever before.

Design Features

  • Unique flush pop-out handle for ease of operation, removing the need for additional unsightly handles
  • Unique traffic door handle
  • Heavy duty compact rollers as standard
  • Both frame and cill sightlines of 97mm
  • 122mm Slimline interlock
  • Low threshold
  • Larger glazing area


  • Square bead
  • Glazing 28mm– 44mm
  • Available in a range of opening configurations
  • Available in a range of single or dual colour and anodised
