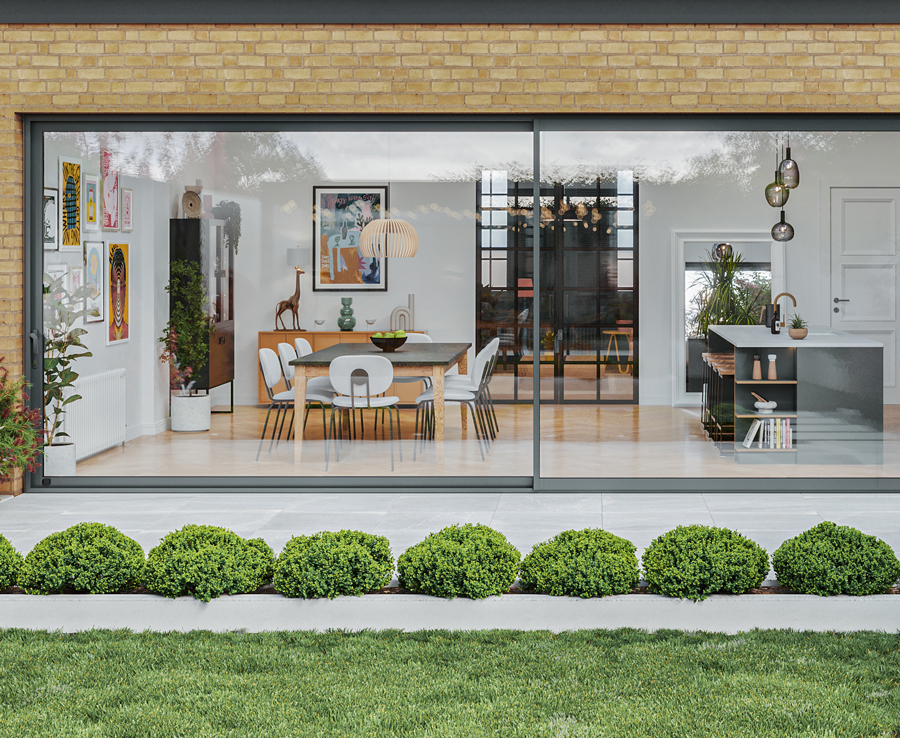

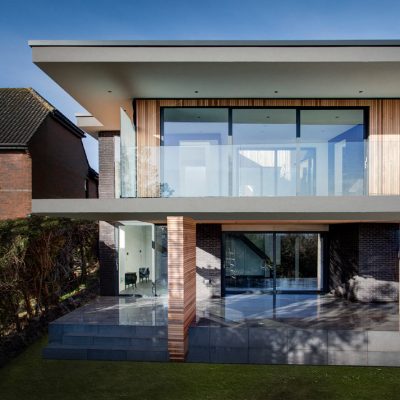

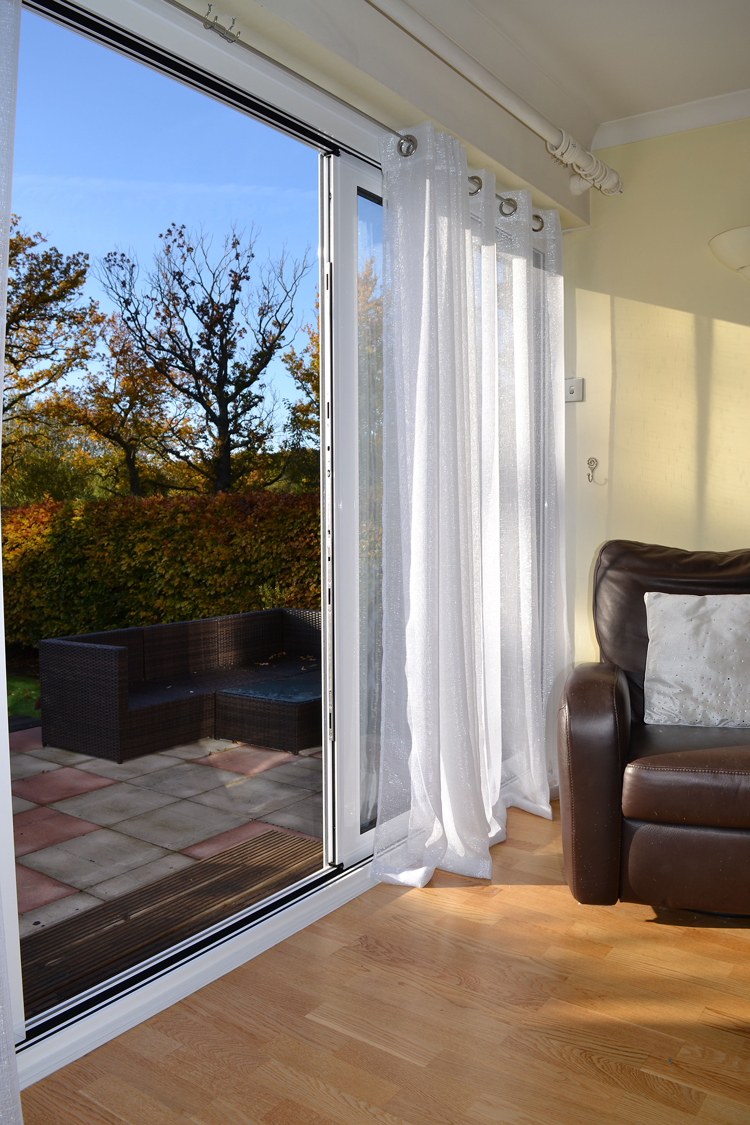

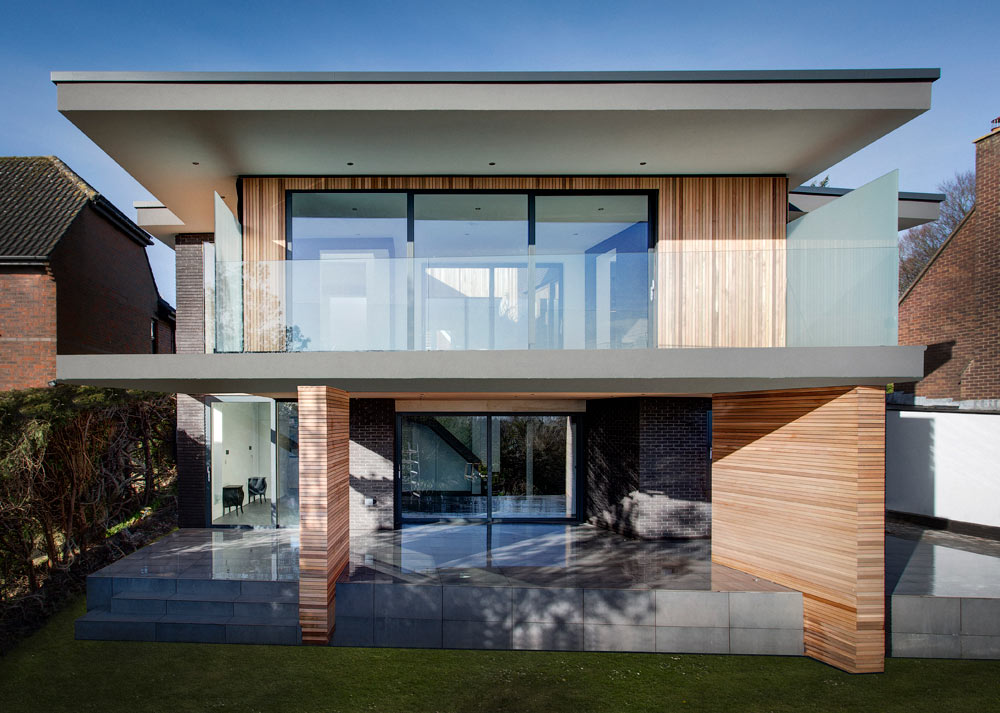

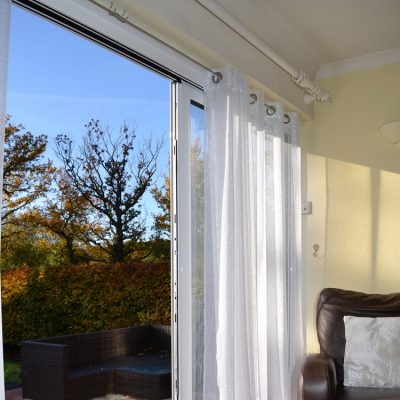

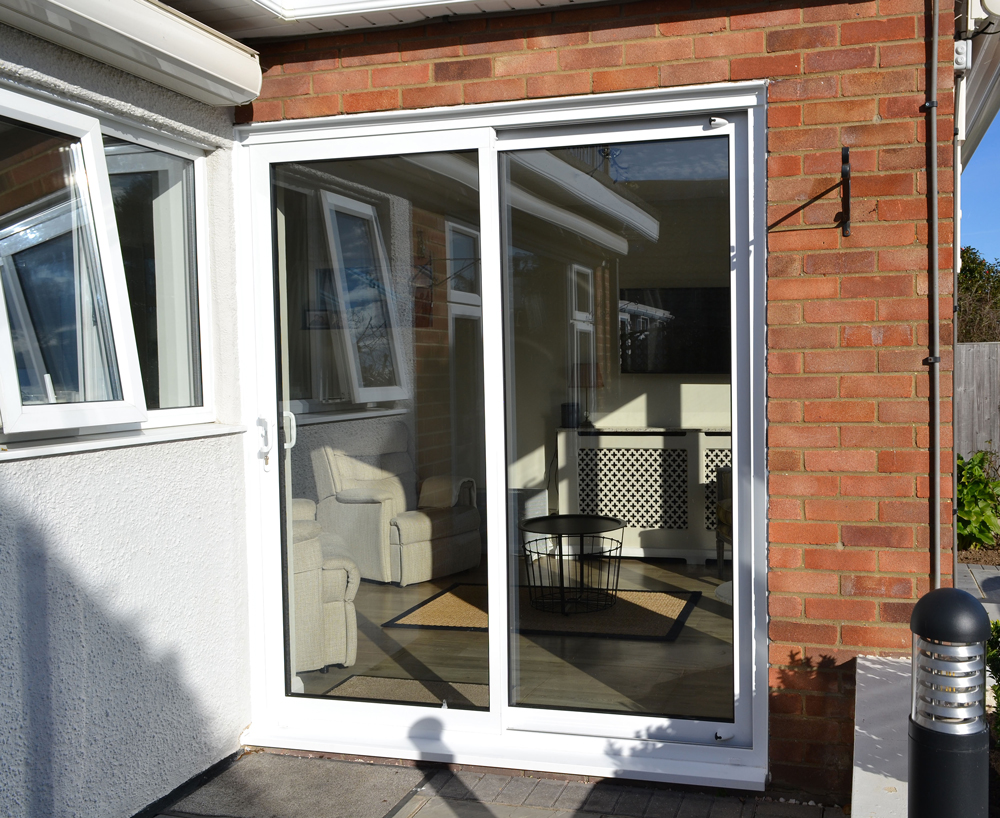

External view of high spec aluminium patio door

Sliding Doors

BSC94 Inline Sliding doors

Information
Colours
Downloads

Engineered using AluK’s high quality and robust BSC94 aluminium system, inline sliding doors fabricated here at Alu-tec (UK) can be supplied to fit onto either a Duo or Tri rail track. Certified to PAS 24 standards for industry-approved security levels, U-values as low as 1.7 W/m²K when double glazed ensures high water and air resistance levels of value to any architectural project.

The inherent strength of aluminium means that inline sliding doors can accommodate a panel weight of up to 400kg and still retain sightlines as slim as 85mm. There is also the option to accommodate double glazing up to 31mm thick.

Enquire about this product

White White
Anth. Grey Anth. Grey
Black Black
Chocolate Brown Chocolate Brown
Anth Grey / White Anth Grey / White
Black / White Black / White
Brown / White Brown / White
RAL colour options RAL colour options

Enquire about this product

Array Logo

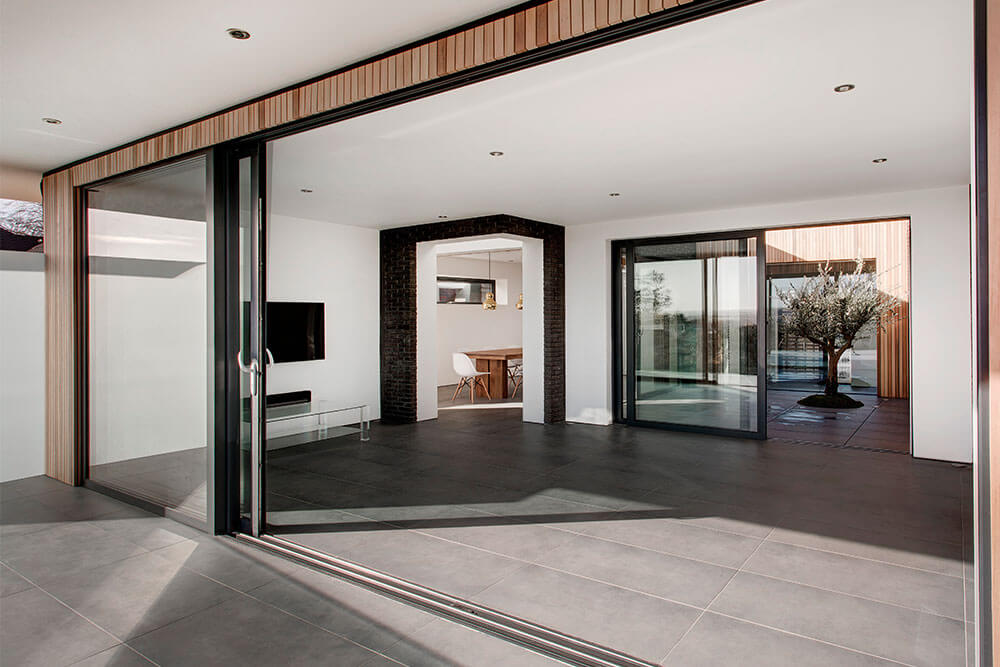

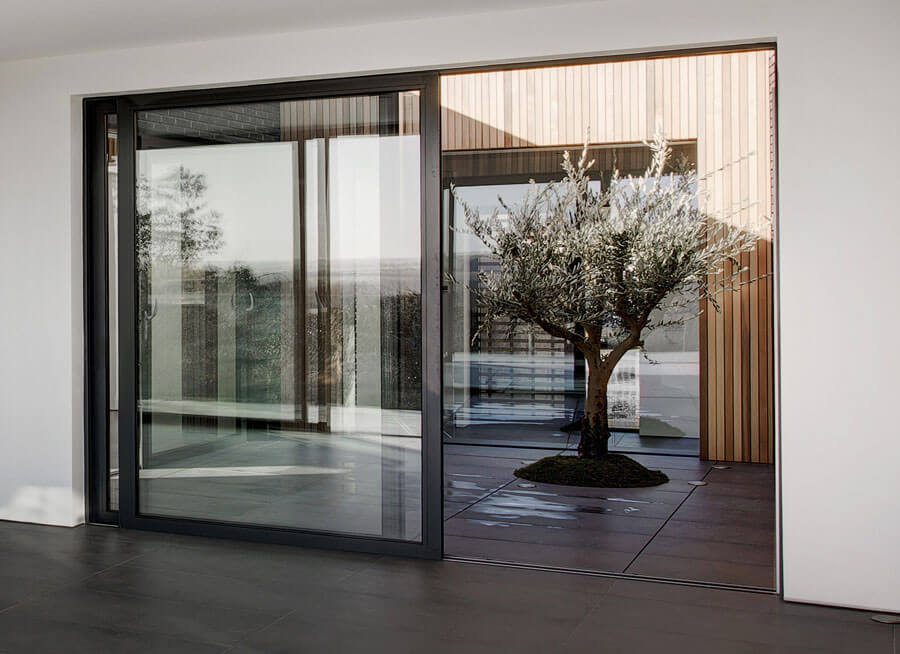

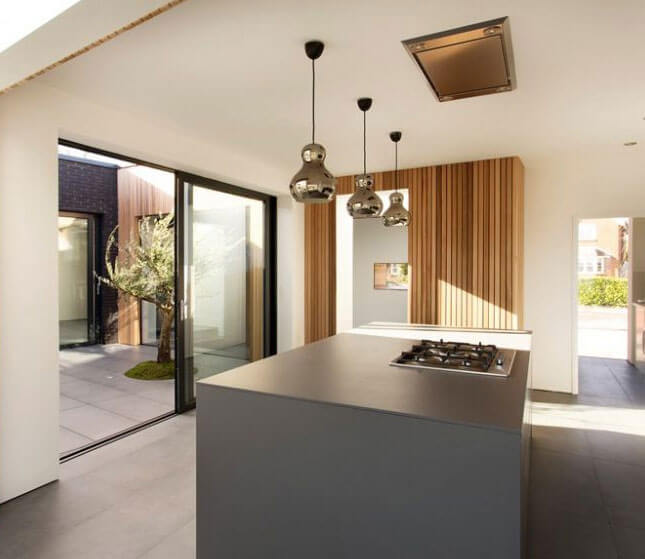

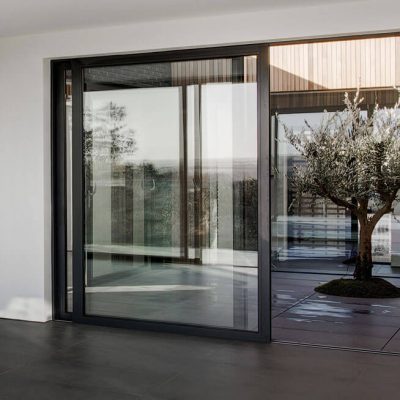

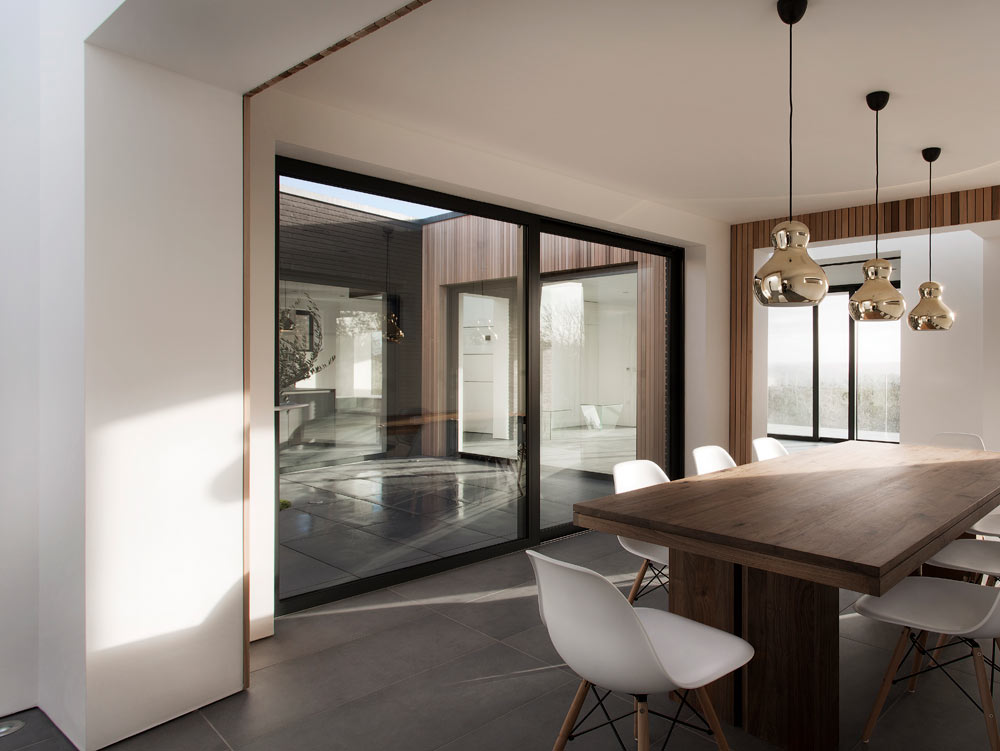

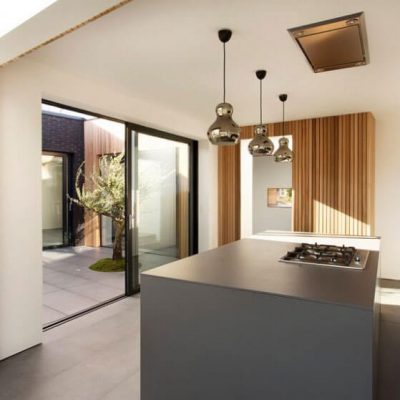

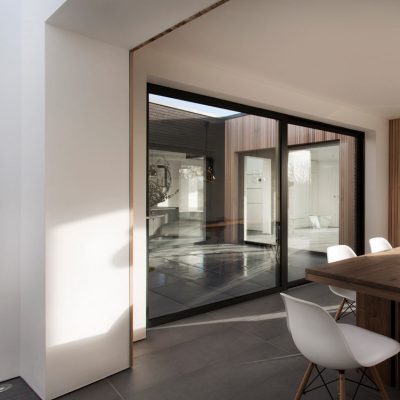

AluK aluminium lift and slide door

Sliding Doors

BSC94 Lift and Slide Sliding doors

Information
Colours
Downloads

BSC94 Lift and Slide Sliding doors from Alu-tec (UK) emphasise versatile function and sleek sightlines of just 100mm, within a multitude of configurations. With thermal U-values of 1.7 W/m²K when double glazed, these premium doors will provide any sized architectural project high levels of water and air resistance.

Panel weights of up to 400kg ensures that all our BSC94 Lift and Slide Sliding doors remain robust yet easy to operate. A full range of hardware, dual colour, and security feature options makes it easy for them to suit almost any conceivable application.

Enquire about this product

White White
Anth. Grey Anth. Grey
Black Black
Chocolate Brown Chocolate Brown
Anth Grey / White Anth Grey / White
Black / White Black / White
Brown / White Brown / White
RAL colour options RAL colour options

Enquire about this product

Array Logo

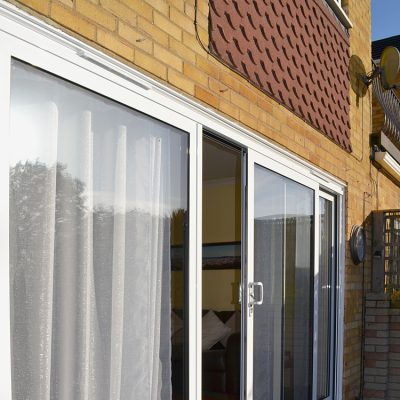

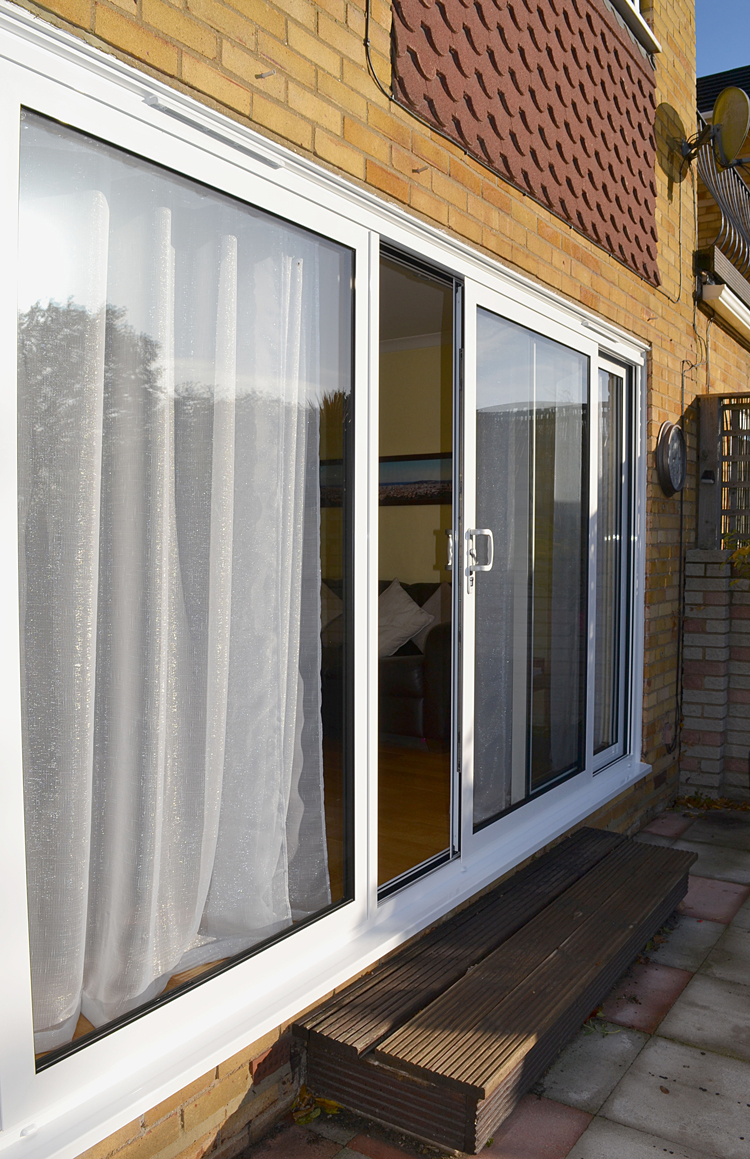

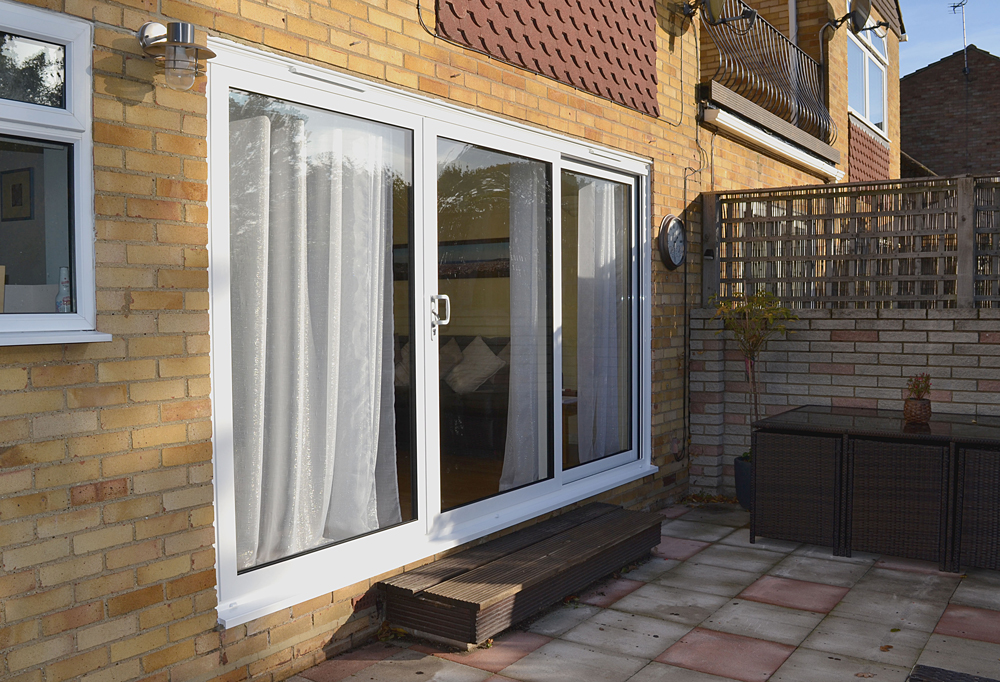

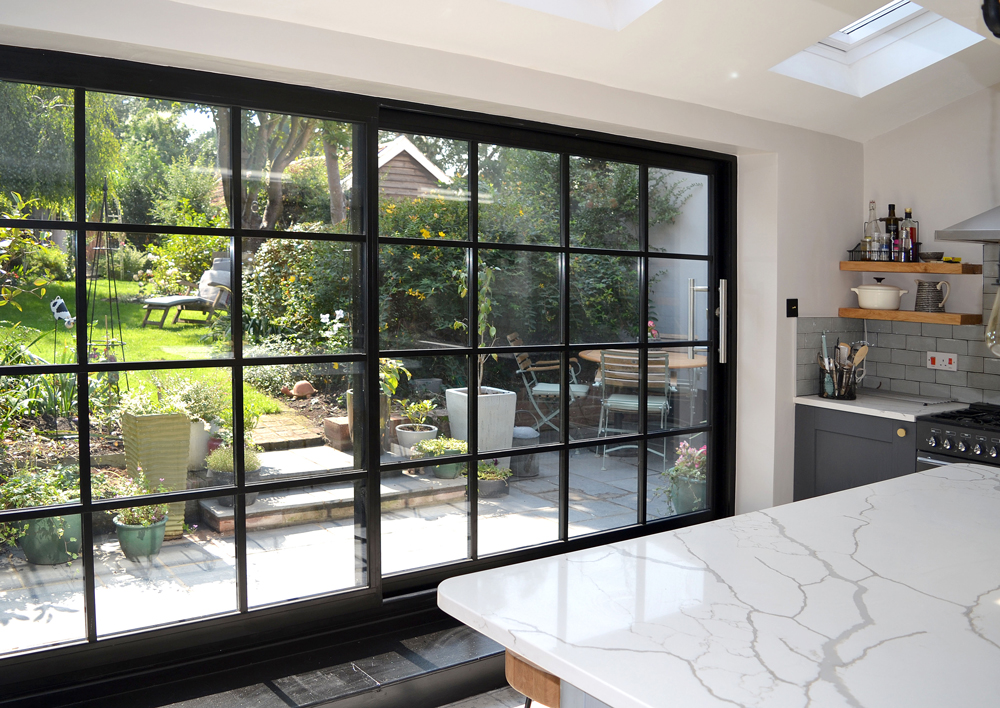

Aluminium 3 pane sliding door

Sliding Doors

Sliding patio door key features

BSC94 Inline Sliding door
BSC94 Lift and Slide Sliding door
Sash Dimension
3000mm (H)
3000mm (H)
Glazing Thickness
20mm - 31mm
20mm - 31mm
Air Tightness
Class 4 (600Pa)
Class 4 (600Pa)
U-value (double glazing)
1.9 W/m²K
1.7 W/m²K
Water Tightness
Class 7A (300 Pa)
Class 7A (300 Pa)
Maximum sash weight
400kg
400kg

Aluminium door expertise and more

Doors should provide protection, insulation, and be visually attractive. They welcome people to a property and provide security and thermal efficiency. At Alu-tec we manufacture and supply a wide range of aluminium door styles. Whatever your main area of business, we can create bespoke doors which will be a valuable asset to your business.
